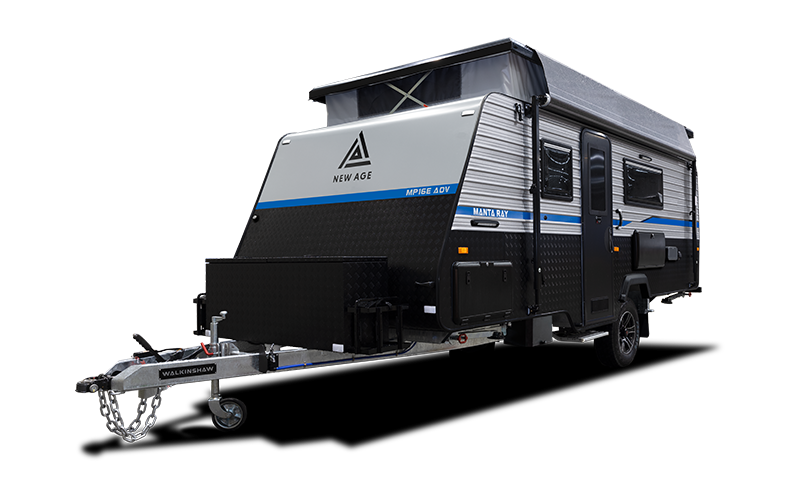

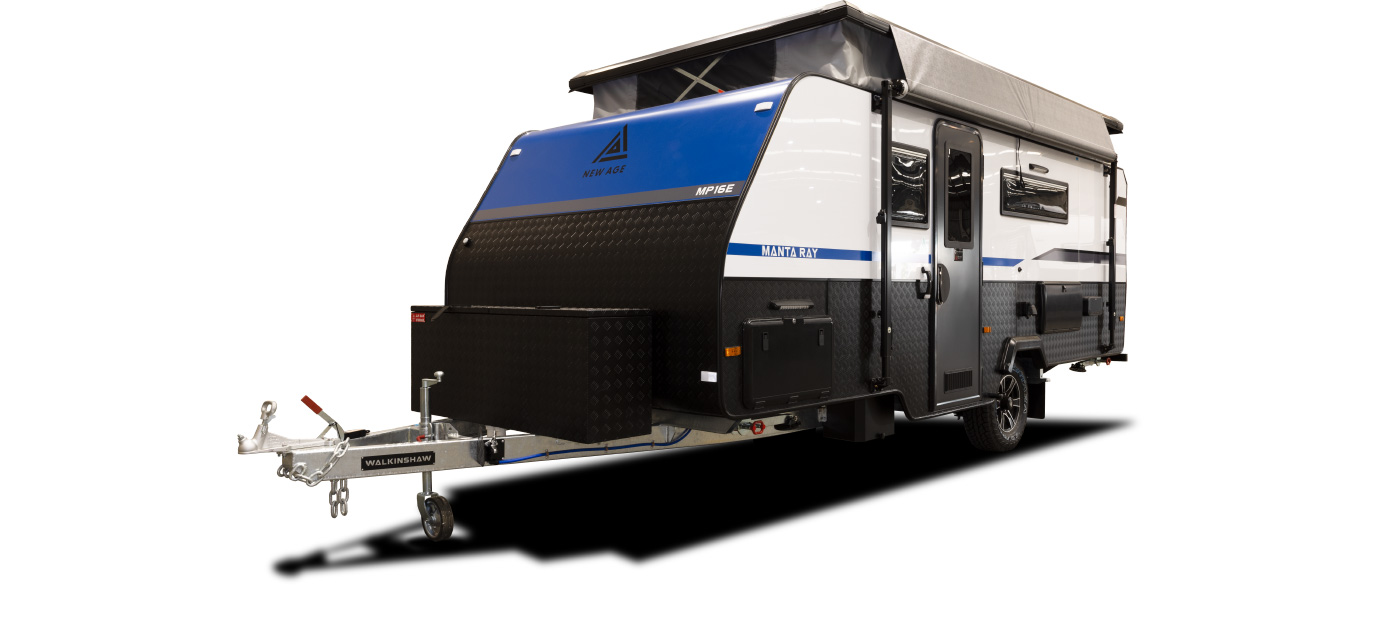

Packed with all the offerings of a full length caravan, the Manta Ray Pop Top sets new design benchmarks. It starts with an all-new roof design system.

Featuring a domed composite roof panel, unique aluminium bodytop and specially designed roof surrounds, the new system provides additional strength and promotes drainage to ensure optimum comfort and protection from the elements.

For exceptional towability and durability, the new Manta Ray Pop Top also boasts a Walkinshaw engineered galvanized chassis. The signature New Age rear mould and durable exterior sidewall trimming add yet another level of sophistication to the design, while a number of cleverly configured floor plans enable the Manta Ray Pop Top to accommodate a host of modern day conveniences.

Needless to say, Luxury and Adventurer upgrade packs are also available for those wishing to take their Manta Ray Pop Top to yet another level. Whether you’re planning short trips or a tour around Australia, the new Manta Ray Pop Top range lets you do it in comfort and style.

Manta Ray Pop Top 16 Ft Ensuite at a glance

Suitable for
up to 2 people
Comfort of

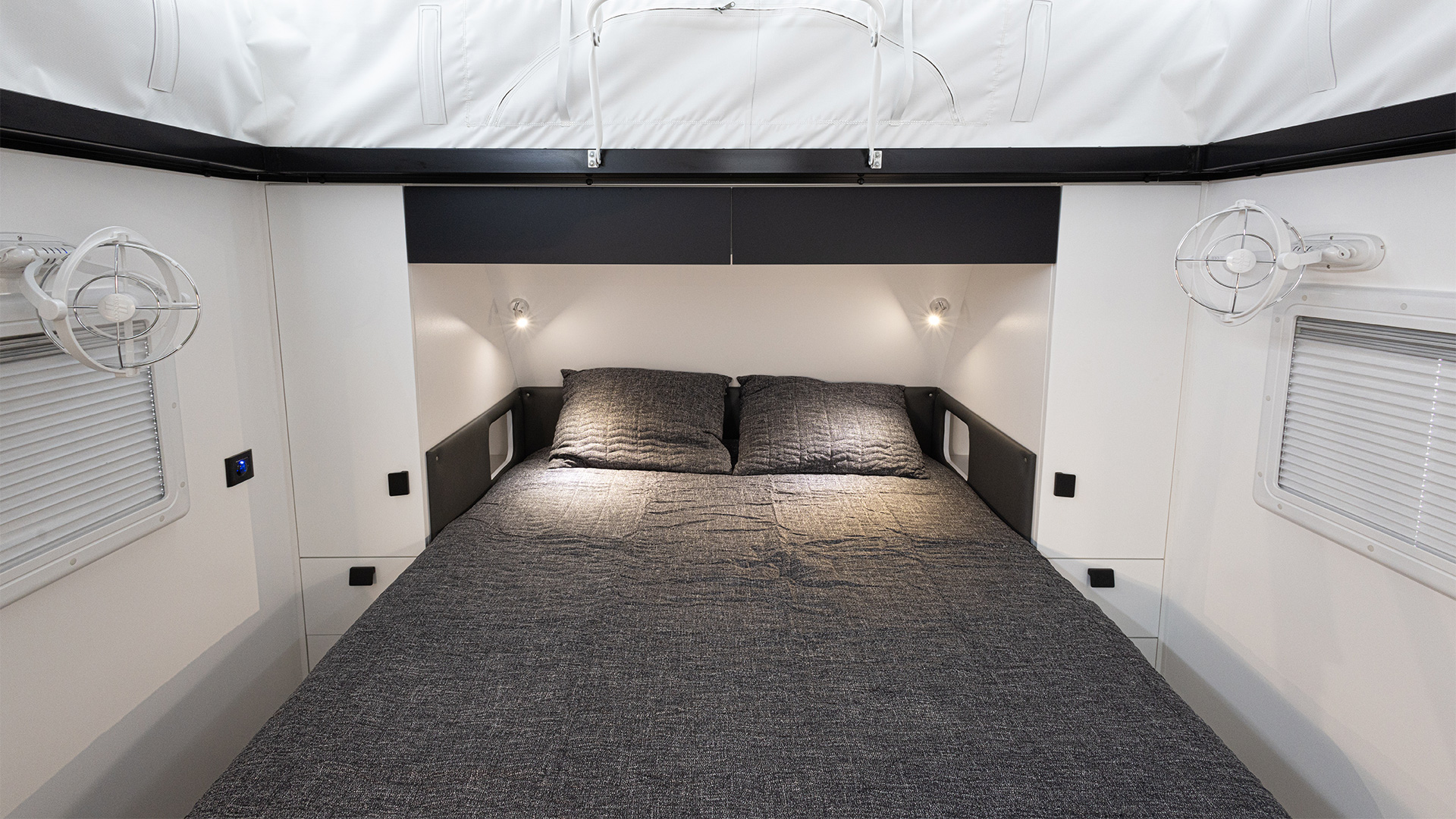

1 queen size bed
Internal
shower
Ensuite with
toilet
Reverse cycle
air conditioning
Extending
pop top

Manta Ray Pop Top 16 Ft Ensuite 360°

Gas bottles 2 x 9kg ■
Tunnel boot through ■
Water tank 1 x 110L ■
Grey water tank 1 x 110L ■
Mains pressure ■
Gas bayonet & hose ■
Annex lights ■
Boot light ■
Dual 12v/TV socket ■
NAC grab handle light c/w night & bug lights ■
1 x outlet & 1 x inlet 240v ■
TV antenna ■
2 x 100A AGM battery ■
1 x 200W solar panel ■
Awning 12 ft ■
External Fusion all in one sound panel ■
Light bar over main door ■
Raven coating - black ■
Trimming front & sides 630mm high ■
European windows ■
Ensuite hatch 12v ■
Wheel spats plastic moulded ■
Main door 2RC ■
Picnic table c/w tubs & night light ■
Exterior composite aluminium cladding ■
Tap on a-frame ■
12v plug & play looming system ■
Queen bolster innerspring mattress ■
Alcove cutouts to bed area ■

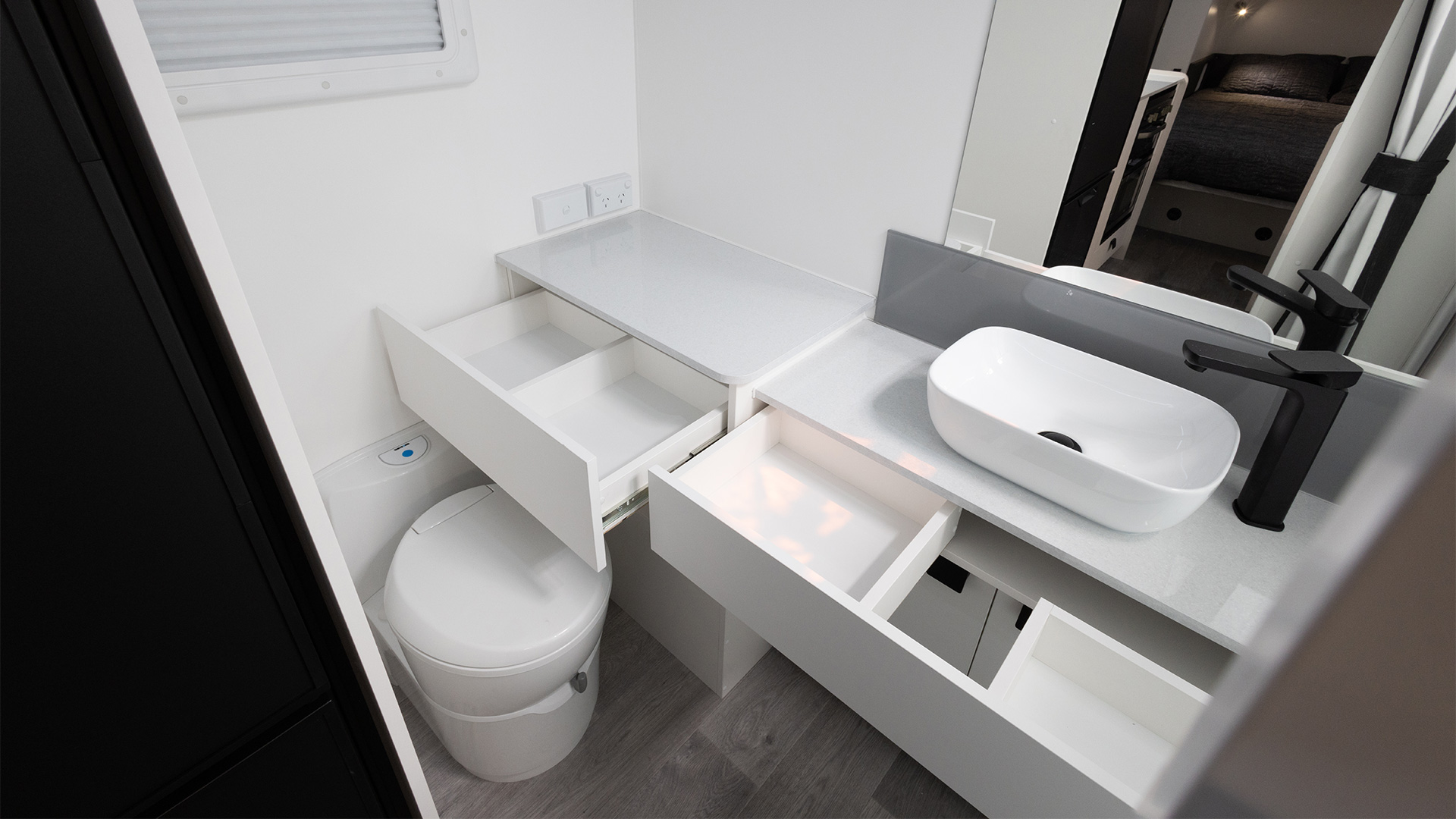

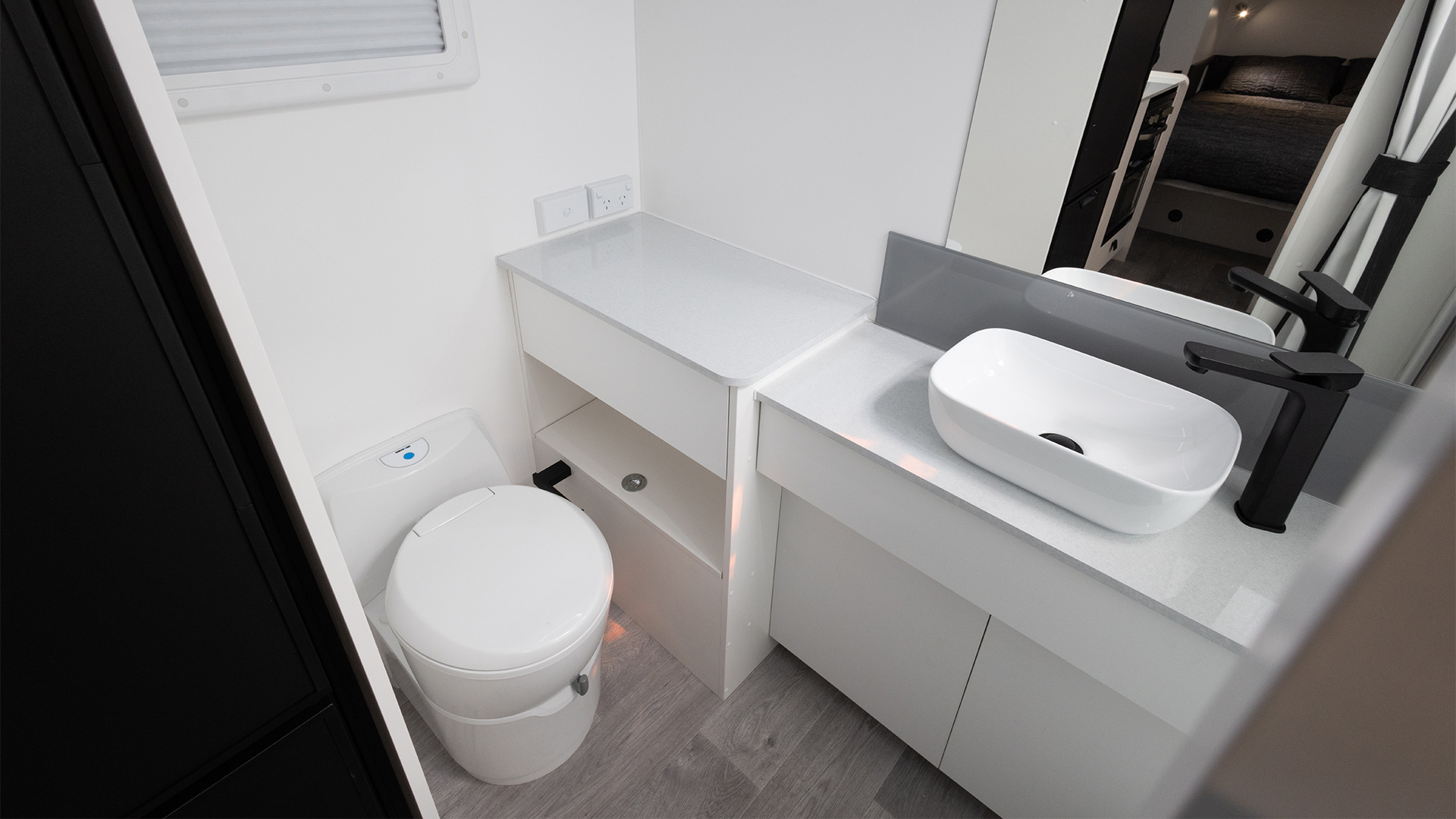

Toilet ■

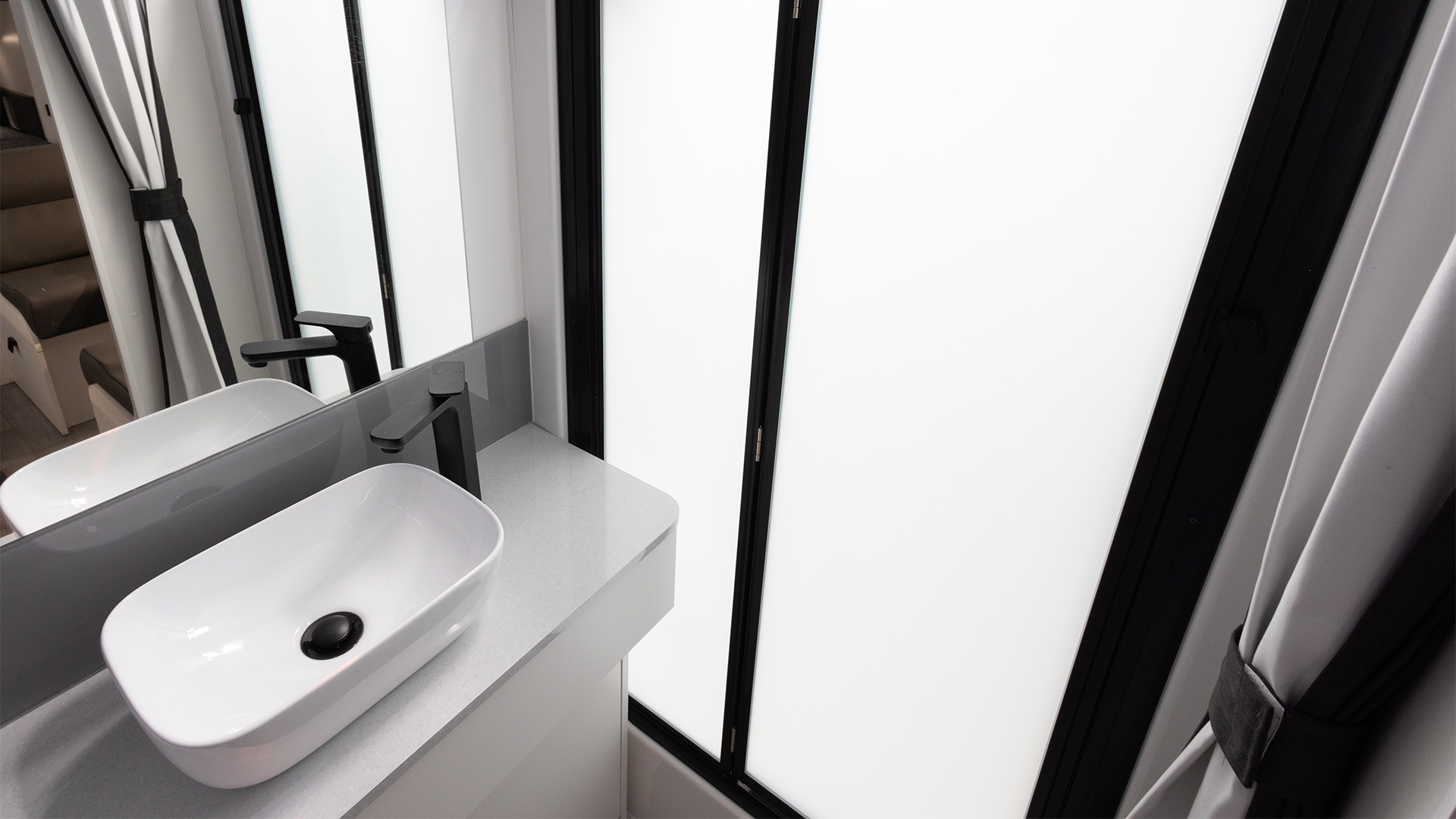

Ceramic ensuite basin ■

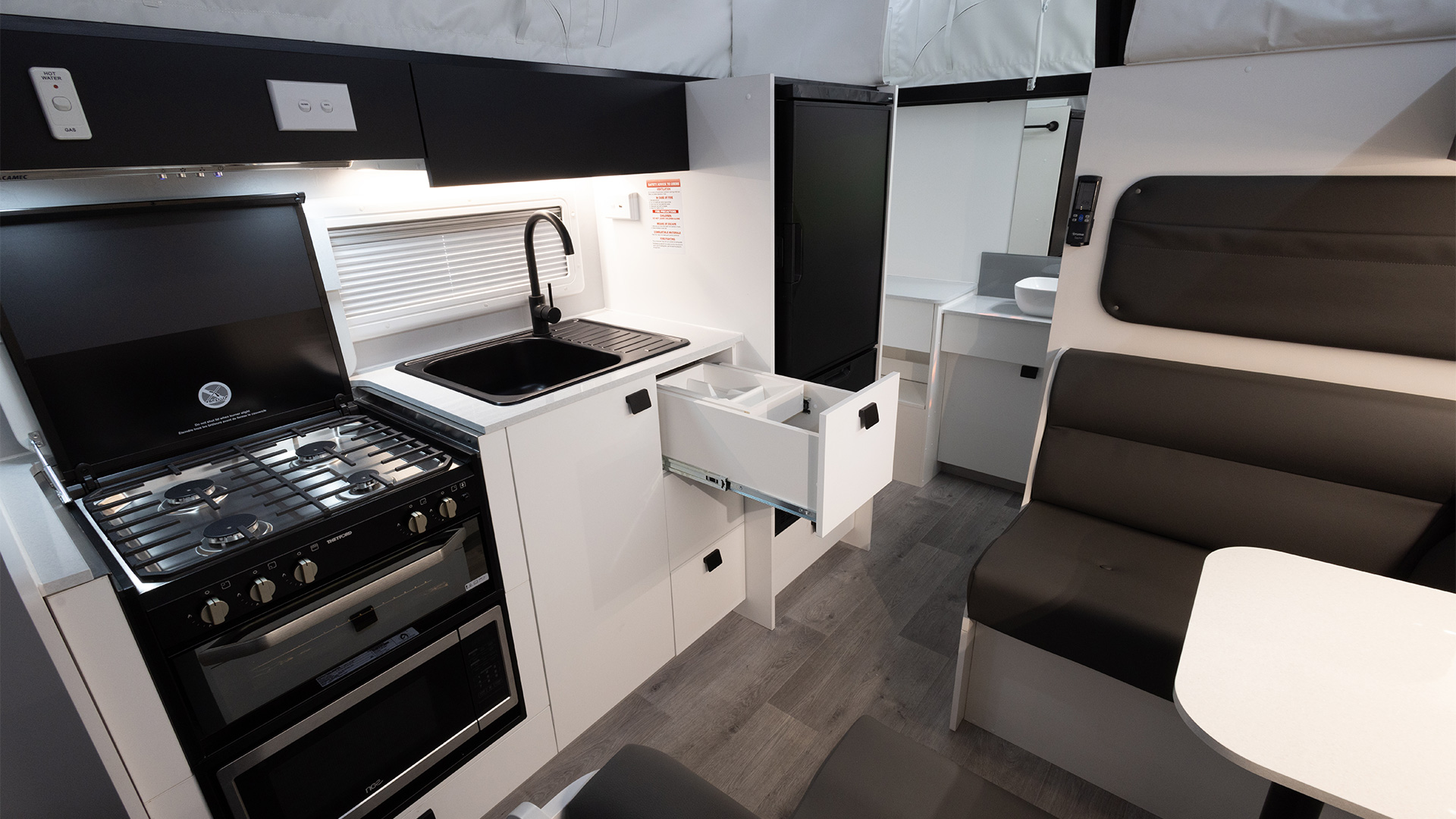

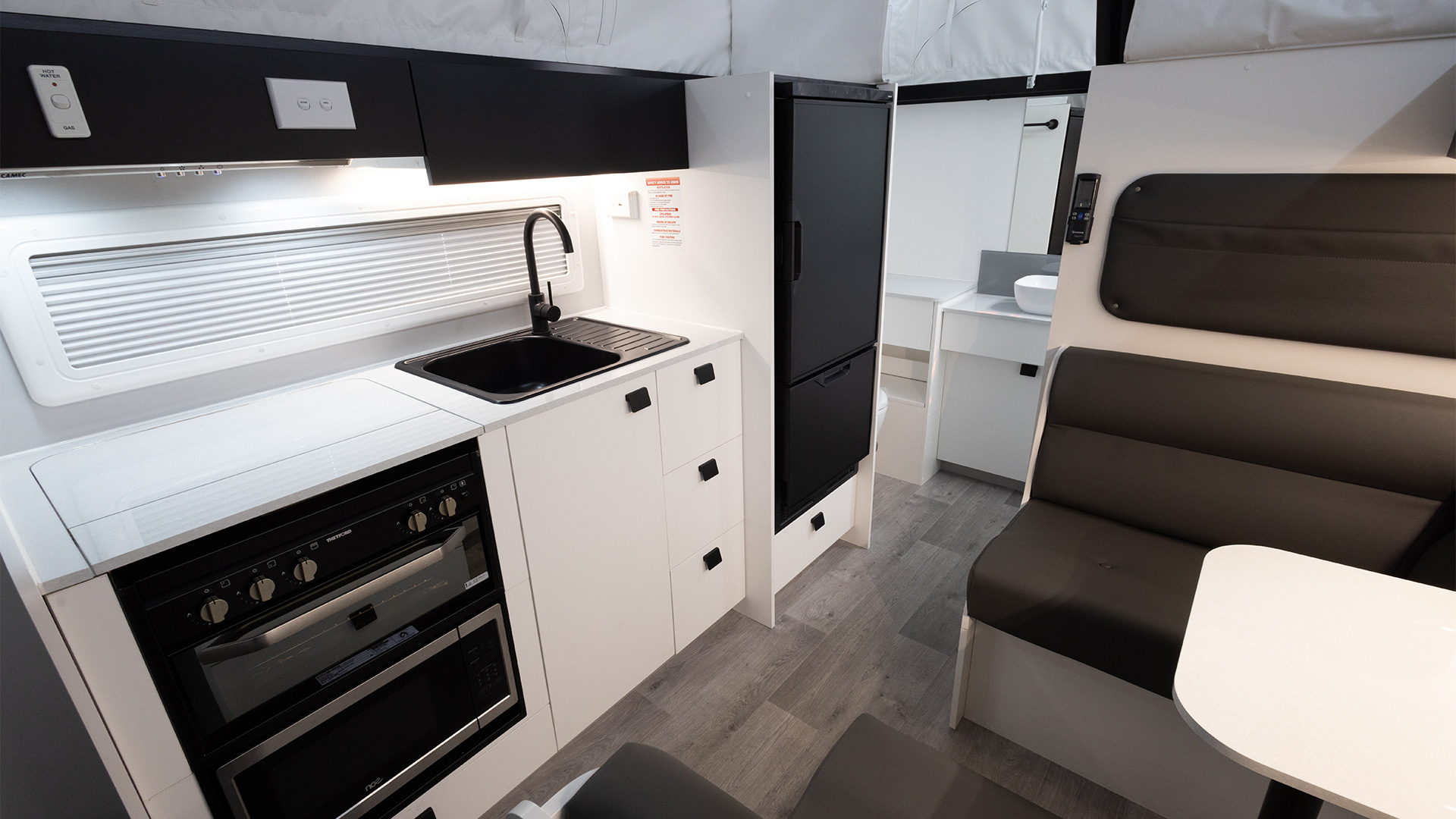

Recessed cooktop ■
Mini grill ■

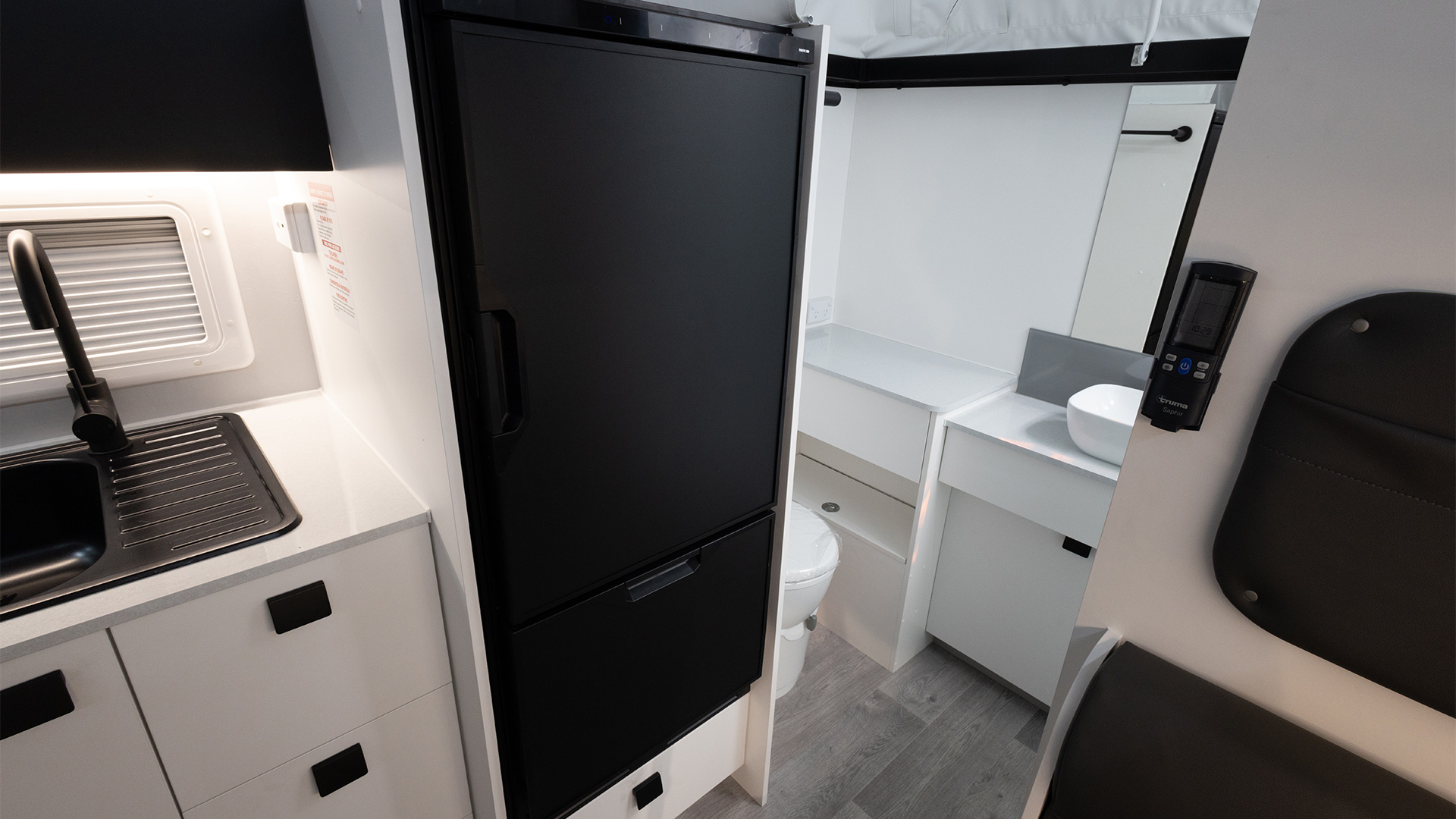

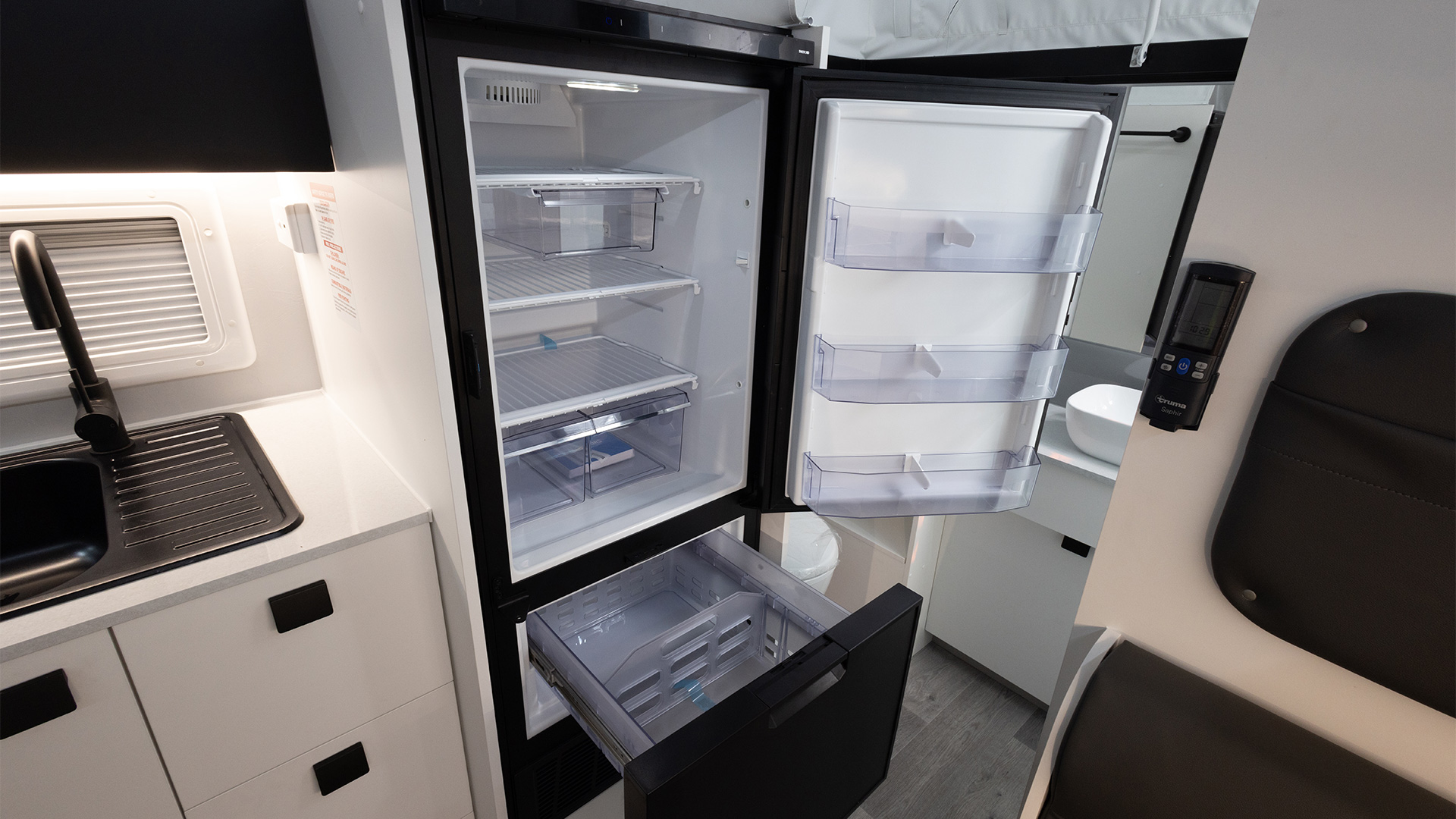

Fridge 175L Compressor Thetford ■
HWS (gas/electric) ■

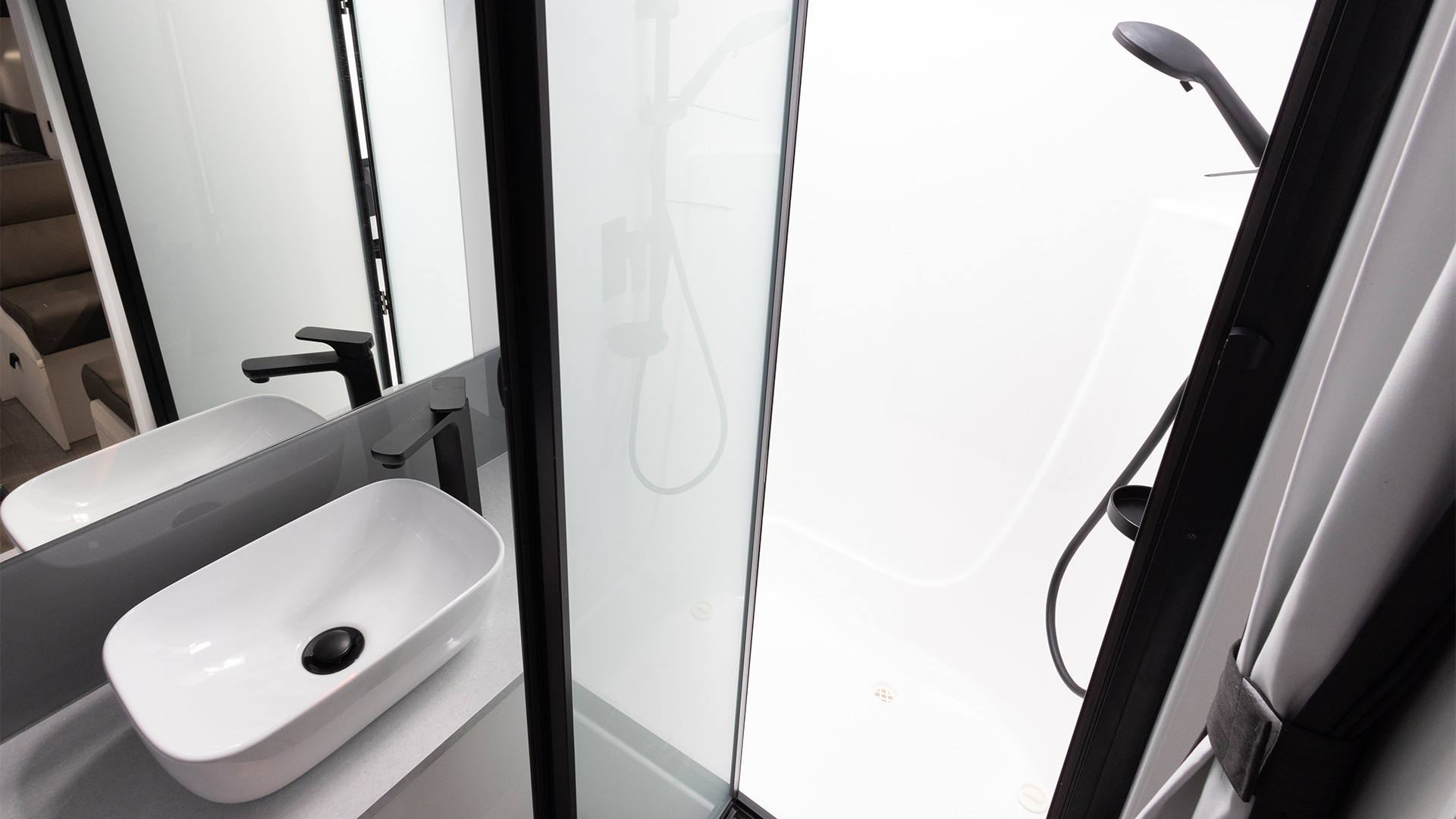

Shower ■
Stainless steel kitchen sink - black ■
Black tapware ■
28 inch smart TV c/w bracket & point ■
Air conditioner floor mount ■
Recessed strip lighting to OHC ■
LED mood lighting ■
Microwave ■
Battery management system BP35HA lithium ■
B-plus Odyssey Link c/w water gauges ■
Internal Fusion all in one sound panel ■
Wireless charging pads ■

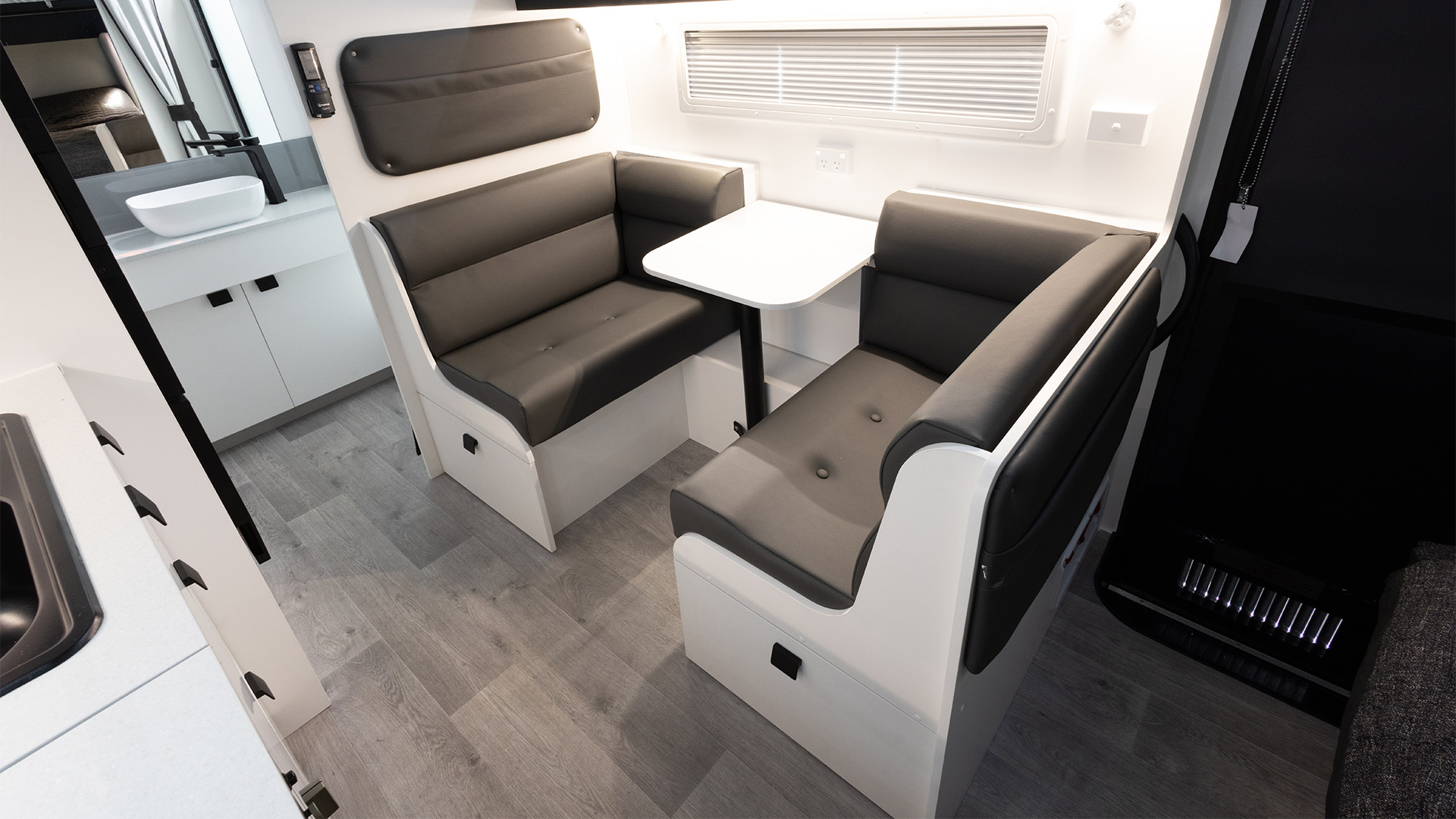

Café dinette ■

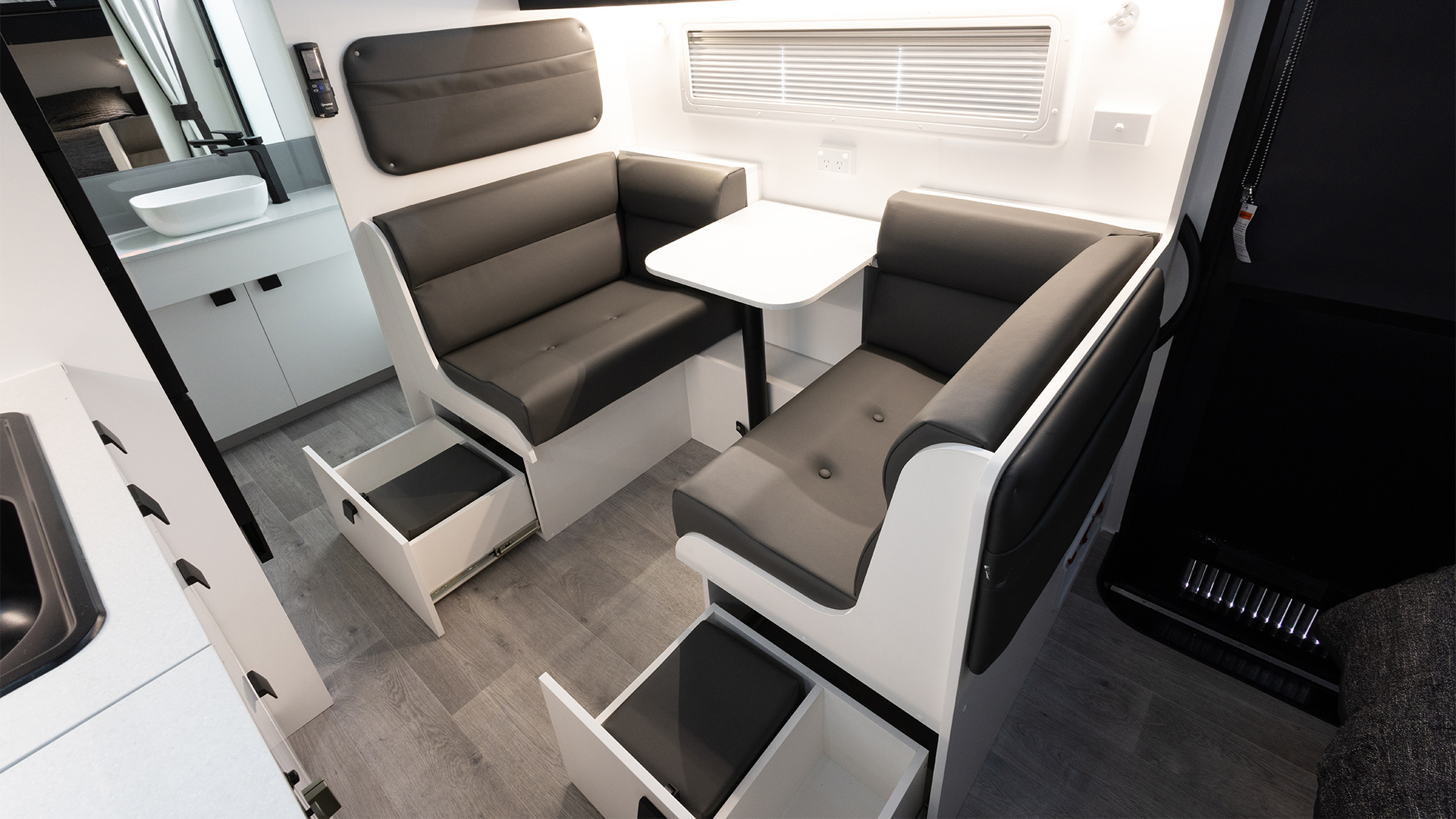

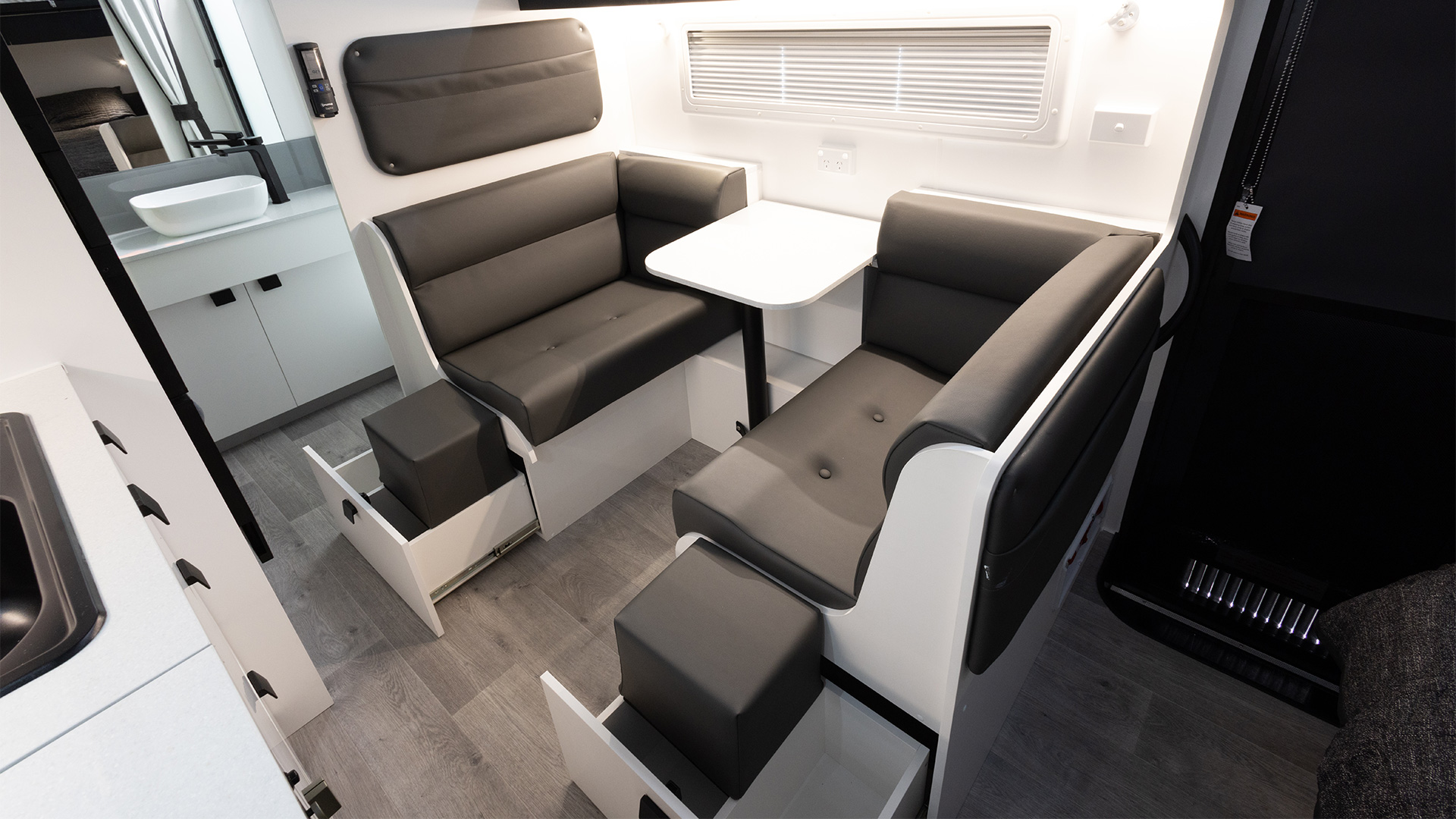

Pull out drawer under seating c/w footrest cushion ■
Bed head surround ■
Doona & pillow set ■
Fire blanket ■
Fire extinguisher ■
First aid pack ■
Smoke detector ■
Towel rail double ■
Holland blind ■
USB combo reading light ■
Single axle ■
Tyre LT235/75 R15 ■
Black matt rims x 3 ■
Alko eye & eye 10 leaf ■
12 inch brakes ■
Bosch Tow Assist ■
A-frame 5 inch ■
Bumper bar black 2 supports ■
Extended a-frame ■
Chassis main members 6 inch ■
Toolbox c/w gas bottles ■
Hitch - 50mm ball ■
Stabilizer legs ■
Galvanised chassis ■
Mud flaps ■
Coupling standard ■
Jockey wheel wide grip clamp ■
12-pin plug c/w Anderson plug ■
ATM 2440 kg
Tare 2040 kg
T/Ball 190 kg
Travel length 7100 mm
Travel width 2500 mm
Travel height 2950 mm
Internal height 2030 mm

*Weights and dimensions displayed are to be used as a guide only. New Age Caravans reserves the right to alter specifications and pricing without notice. Weights and dimensions will change depending on options and accessories fitted to the caravan. To ensure our products are fit for purpose, the load carrying capacity of your chosen product will vary depending on options and accessories fitted. Illustrations and or pictures may display options that are not standard.

Standard  ■
Back to top

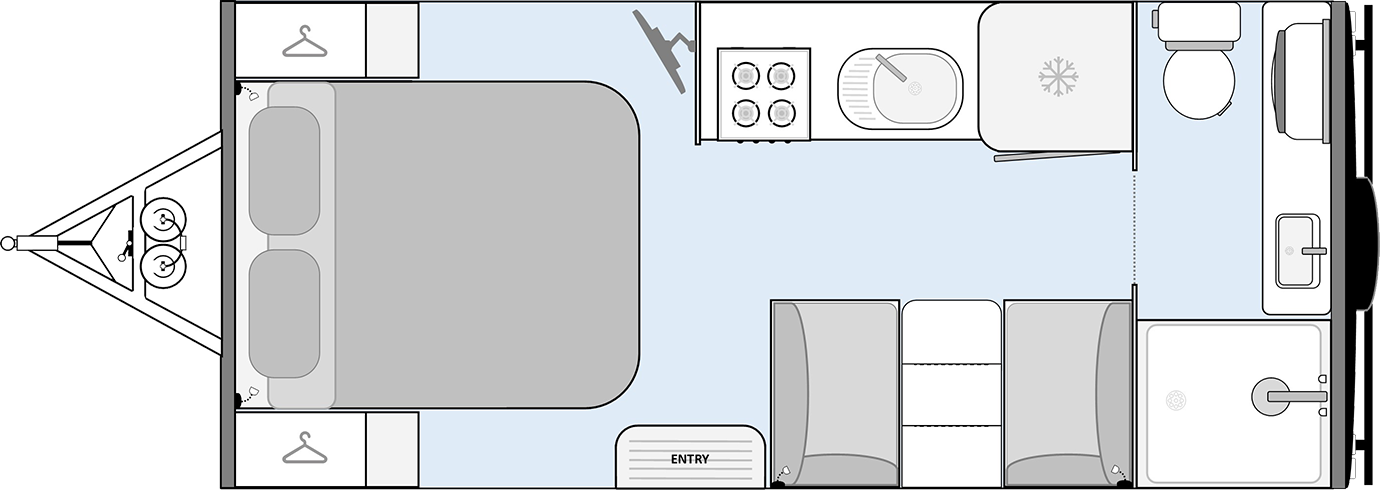

Floorplan

Manta Ray 16 Ft Ensuite Floorplan
